JT-8310 Grey Cathodic Electrocoat

  • JT-8310 Grey Cathodic Electrocoat
  • JT-8310 Grey Cathodic Electrocoat
  • JT-8310 Grey Cathodic Electrocoat
  • JT-8310 Grey Cathodic Electrocoat
Place of Origin China
Brand Name Jingtu
Certification MSDS SGS
Model Number JT-8310 Grey
Document GZIN2503001557PC02_EN.pdf
Minimum Order Quantity 500KG
Supply Ability 10000 ton/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Highlight

cathodic electrocoating

,

JT-8310 Cathodic Electrocoating

,

Grey Cathodic Electrocoating
Leave a Message
Product Description

Composition
This product is composed of two components: emulsion and pigment paste. The main resin consists of epoxy resin, isocyanate crosslinking agent, and toughening agent, which forms an emulsion after acid neutralization. The epoxy resin serves as the dispersion resin and is combined with pigments and fillers to produce the pigment paste through grinding.



Features

  • Application Performance: Excellent throwing power and electrodeposition performance; outstanding anti-settling properties of the bath liquid.
  • Film Performance: Excellent coating appearance and mechanical properties.
  • Environmentally Friendly: A lead-free, heavy-metal-free, water-based coating that complies with environmental protection standards.

Applications

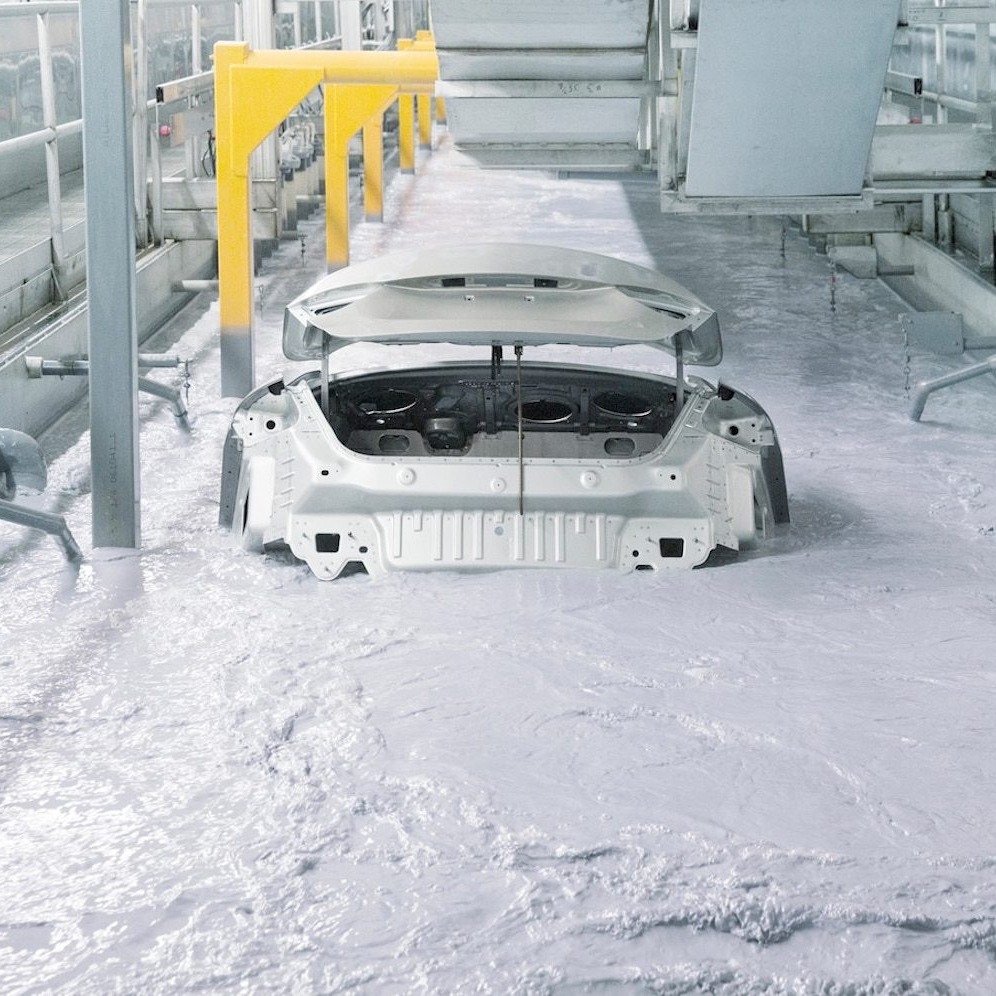

  • Widely used for corrosion-resistant coating in automobiles, automotive parts, home appliances, hardware, agricultural machinery, and various steel components.

Technical Specifications

Raw Paint Specifications

Item Technical Specifications Inspection Standard
Emulsion Color Paste
State of Material in Container Milky white or light yellow liquid Grey viscous liquid, slight layering allowed, no agglomeration Visual inspection
Solids Content 120°C / 1h / 2g, % 32-34 50-52 GB/T1725-2007
Fineness μm ≤10 ≤20 GB/T6753.1
pH Value 25°C 6.0-6.6 —— GB/T9724
Conductivity 25°C, μs/cm 1400-2200 —— HG/T3335


Bath Parameters

Item Technical Specification Testing Standard
Solids Content 120°C / 1h / 2g, % 16-18 GB/T1725-2007
pH Value 25°C 5.6-6.3 GB/T9724
Conductivity 25°C, μs/cm 1000-2200 HG/T3335
Throwing Power cm, NV = 20% ≥20 HG/T3334-2012
Application Temperature °C 28-32 Thermometer
Electrophoresis Time s Full Immersion 60–180 N/A
Application Voltage V 100-240 2L Bath Solution
Drying Time / Temperature °C / min 175/25 GB/T1728
Solvent Content % 1.0-2.0 QB8008
Breakdown Voltage V ≥300 HG/T3952
Ash Content —— 16-24 GB/T1747-1979
Coulombic Efficiency mg/C ≥25 HG/T3952


Film Performance Indicators

Item Specification Testing Standard
Appearance —— Smooth, flat, no pinholes Visual Inspection
Film Thickness μm 15-35 GB/T13452.2
Hardness —— ≥2H GB/T6739
Erichsen Cupping mm ≥10 GB/T9753
Adhesion Grade 0 GB/T9286
Flexibility mm 1 GB/T1731
Impact Resistance cm 50 GB/T1732
Gloss 60° 50-90 GB/T9754
Acid Resistance 0.05mol/L H₂SO₄,48h No peeling, blistering, or wrinkling; slight discoloration allowed GB/T 9274 Method A
Alkali Resistance 0.1mol/L NaOH,48h No peeling, blistering, or wrinkling; slight discoloration allowed GB/T 9274 Method A
Salt Spray Resistance h ≥800 GB/T1771-2007

*Salt Spray Resistance: Using Bonderite standard phosphated steel panel, unidirectional corrosion ≤ 2 mm*



Bath Preparation
Color paste : Emulsion : Deionized water = 1:4:5 (by weight). Add appropriate additives and neutralizing agents to adjust the parameters. Let the mixture age for 48 hours, then filter and apply.



Application Process
Pre-degreasing → Degreasing → Water Rinse → Surface Conditioning → Phosphating → Water Rinse → Pure Water Rinse → Electrophoresis → Post-rinse → Drying (Also suitable for silane or ceramic pretreatment processes)



Packaging and Storage

  • Packaging
    Emulsion: 50 kg/barrel, 200 kg/barrel, 1000-liter plastic IBC barrel (1000 kg/barrel)
    Color paste: 50 kg/barrel, 65 kg/barrel
  • Storage Conditions
    Store sealed in a cool, dry place at 5–35°C
  • Shelf Life
    Emulsion: 6 months
    Color paste: 6 months (If past the shelf life, the product can still be used if it passes quality inspection based on relevant standards.)



Safety and Hygiene Regulations

  • This product is not listed in the "GB6944 Classification and Code of Dangerous Goods."
  • Ensure proper ventilation during application.
  • Avoid contact with eyes or ingestion.
