Tubular Anode Cell for E-Coating – Open Top Style

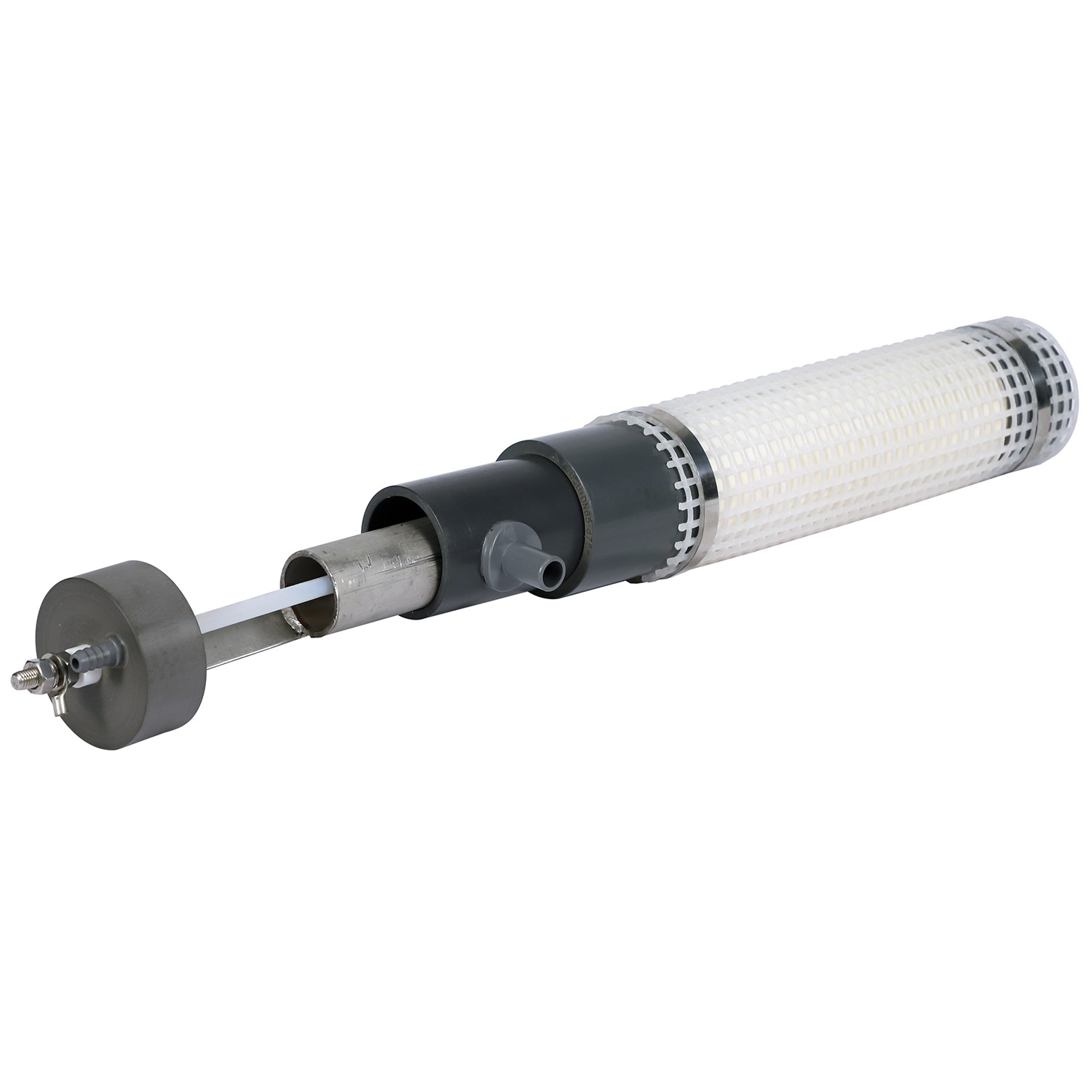

  • Tubular Anode Cell for E-Coating – Open Top Style

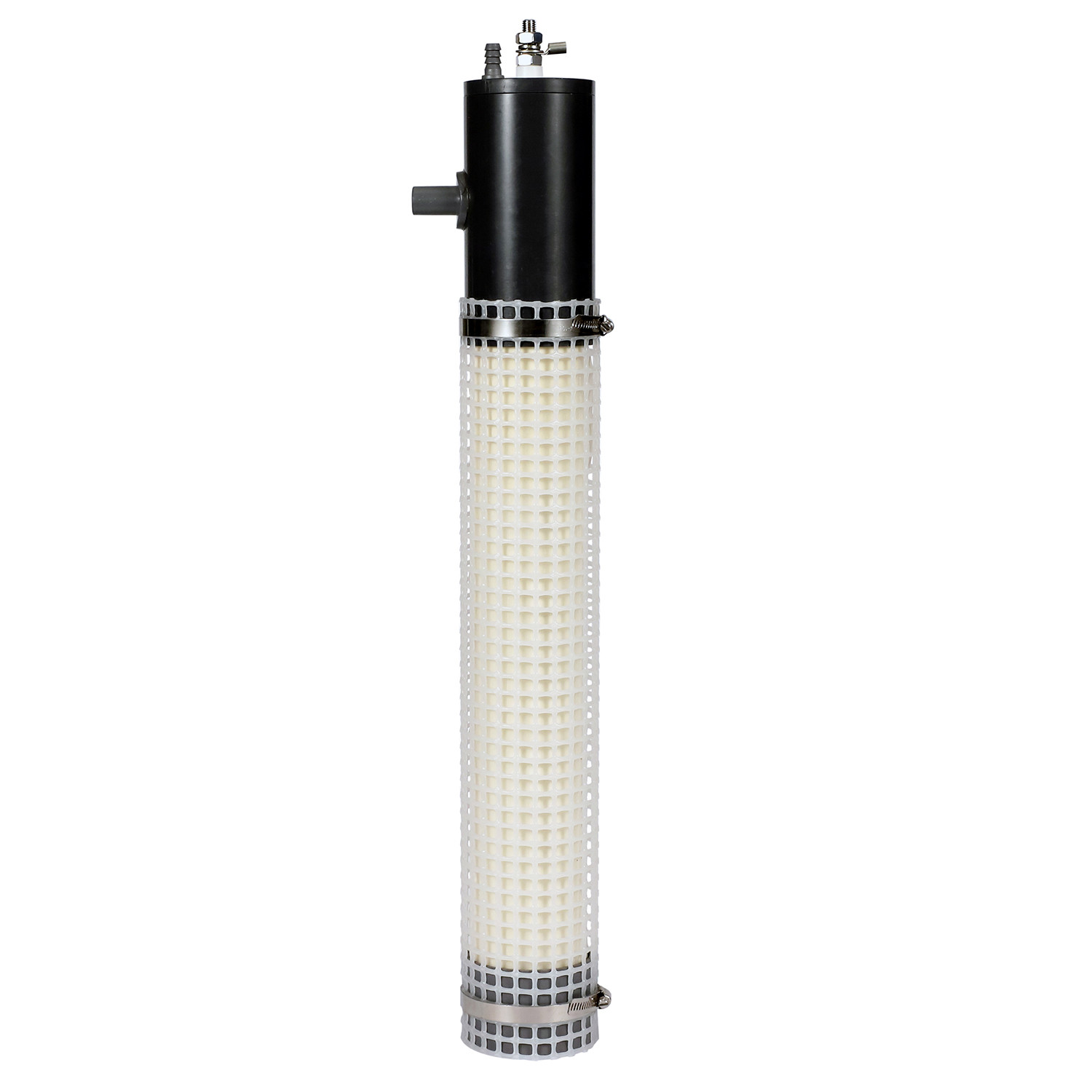

  • Tubular Anode Cell for E-Coating – Open Top Style
  • Tubular Anode Cell for E-Coating – Open Top Style
  • Tubular Anode Cell for E-Coating – Open Top Style
Place of Origin China
Brand Name Jingtu

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Warranty 1 Year Core Components Membrane Elements
Membrane Fuction Anion Exchange Membrane Effective Membrane Length 1000mm
SS316 Electrode OD 48mm / 60mm Membrane OD 77mm
Membrane Area 0.24m² Electrode Area 0.15m²
Current Endure 50A/M² Anodic Liquid Flux 1.5-2.4 L/min/m
Highlight

MCP Perfluoro Centrifugal Pump

,

117m3/h centrifugal water pump

,

117m3/h self priming centrifugal pump
Leave a Message
Product Description

Product Overview
Jingtu’s tubular anode cells are expertly engineered for use in cathodic electrophoretic coating (e-coat) systems. Featuring an open-top design, they deliver stable, high-efficiency performance across a wide range of industries, including automotive, household appliances, metal fabrication, and general manufacturing.



Key Features

  • Durable and Reliable

Constructed with industrial-grade materials, our anode cells are designed for long service life and reliable performance under demanding conditions. The product includes a 1-year warranty for both the complete unit and its core components.

  • Advanced Anion Exchange Membrane

Equipped with high-performance anion exchange membranes that ensure effective ion transfer, enhanced bath stability, and improved coating quality.

  • Optimized Performance

Anolyte flow rate: 1.5–2.4 L/min/m

Current density capacity: up to 50 A/m²
This provides excellent conductivity and minimizes energy consumption in large-scale production environments.



  • User Support & Service

We offer video tutorials and online technical support to help ensure smooth installation and operation.



Specifications

Brand & Configuration Cell Type Effective Membrane Length (mm) Membrane Outer Diameter (mm) Electrode Outer Diameter (mm) Electrode Material
Jingtu Tubular Anode UNION(pressurized)
OPEN
FLANGE
BARE		 1000
1500
1700
2000
......		 1=76
2-67		 A=48
B=60
N=No Electrode		 SS 316L
Ti
Titanium with iridium coated.
......

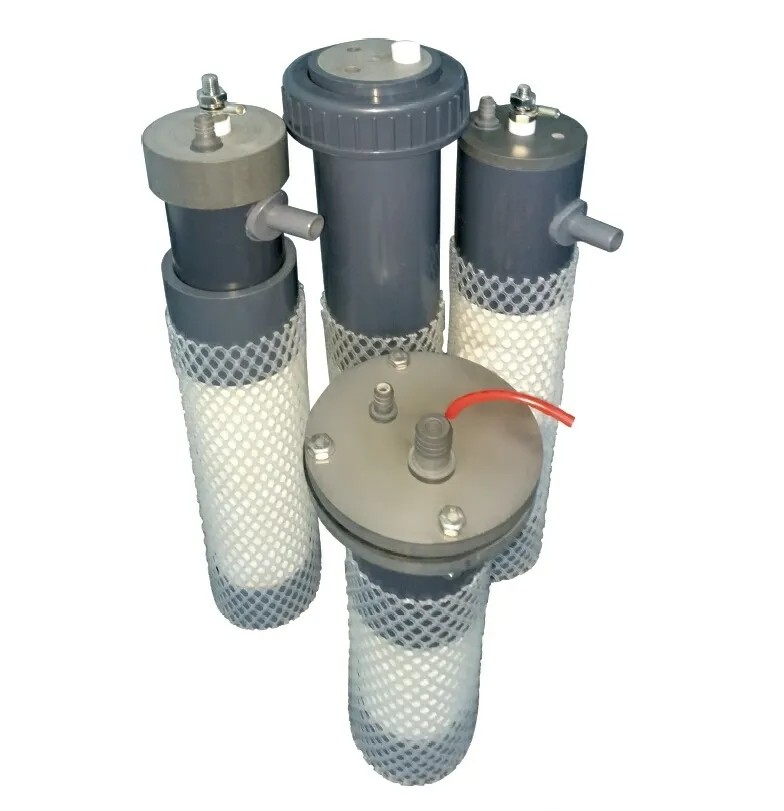

Available Types

  • Open Type: Cost-effective and easy-to-maintain design
  • Union Type: Withstands high pressure; easy to install with high circulation efficiency
  • Flange Type: Excellent corrosion resistance; ideal for installation at the tank bottom
  • Bare Type: Seamless titanium tube with iridium-coated electrode; built for high pressure and extreme corrosion resistance



Anode Cell Drawing

Tubular Anode Cell for E-Coating – Open Top Style 0



















































































A=Effective membrane length
B=Top cap length
C=Top to mid of anolyte return fitting
A,B,C will be made based on customer's request.



Why Choose Jingtu Anode Cells?

  • Premium anion exchange membranes for optimal ion transfer
  • Integrated high-strength porous internal support for enhanced structural integrity
  • Maximized open area design = lower resistance + higher anode efficiency
  • Customizable solutions available for different tank sizes and layout needs
